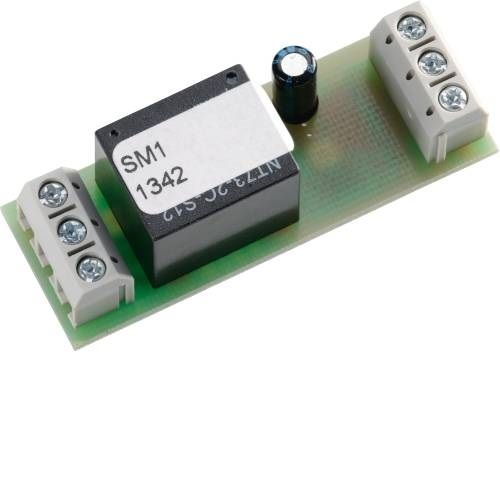

Module for connecting 2-wire fire detector to control panels that use 4-wire detector connection scheme. Module to be placed in-between control panels' inputs and 2-wire smoke detector.
Power supply - 10,5 - 15 V
Outputs NC/NO/C
Marginal current (when relay changes status) >15 mA
Cumulative idle current of sensors and relay up to 10 mA
Dimensions - 54 x 21 x 19 mm

Saslēguma shēmas  - Lejupielādēt
