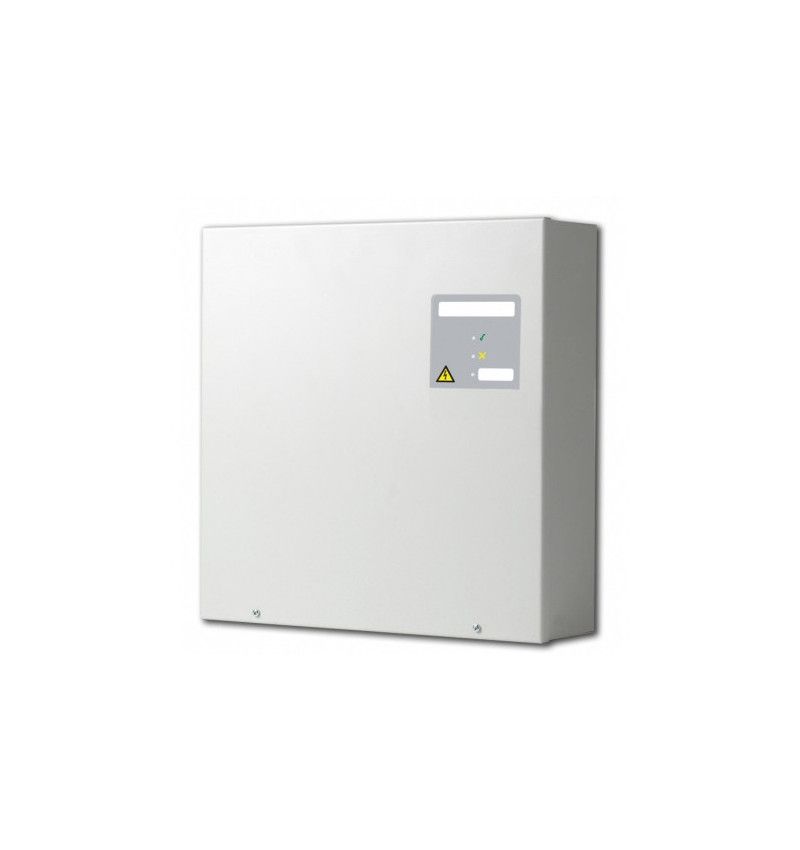

BF562-5 barošānas avots ar kasti, 24V 5A, 2x18Ah 12V, EN54-4
Norādītā cena ir spēkā, pasūtot preci 16.12.2025.
Approvals/certifications: Certified to EN54-4/A2 by the LPCB & VdS.
Application/operation: A boxed Mains to regulated DC power supply providing 5A @ 24V DC. Fully compliant with EN54-4, it includes a single pole volt-free changeover relay that switches for any fault condition.
Mains supply: 230V 50/60Hz.
Mains rated current: 1.3A r.m.s.
Total output current limited to: 5A (Max. output current).
Output: I max.a: 4.6A or 4A selectable. A load greater than I max.a will temporarily reduce batt.charging. I max.b: 5A, charging turned off via CONN6. Output is also customisable via a BF423 Configurator*.
Battery charge capacity: 4 Ah to 17 Ah. Output is customisable via a BF423 Configurator to suit different manufacturers' batteries*.
Max battery size and type: 4 Ah to 17 Ah. Approved 2 x 12V VRLA Battery: Yucel Y Series 7Ah – 17Ah.
Indicators: 3 external – Supply Present (Green); General Fault (Amber); Auxiliary Fault (Amber) and 2 internal – Hazardous Voltages Present (Red) and PSU Status (Amber).
Connections: Mains Input (CONN1); Supply Output (CONN3); Battery Input (CONN3); Fault Relay (CONN4); Charge Off Input (CONN5). Battery Charge Current Link (PLK1); Battery Monitoring On/Off Link (PLK2); High Tem
Expansion connections: A remote thermistor can be connected via PL3 terminals.
Product dimensions (mm): 404 W x 404 H x 110 D mm.
Construction & finish: Metal lid and base; RAL7035 textured.
IP Rating: IP30 (designed for indoor use only).
Weight: 5kg (without batteries).
Operating conditions/temperature: -5ºC to +40ºC. Max relative humidity: 95%.
