Patrol iekštelpu detektori

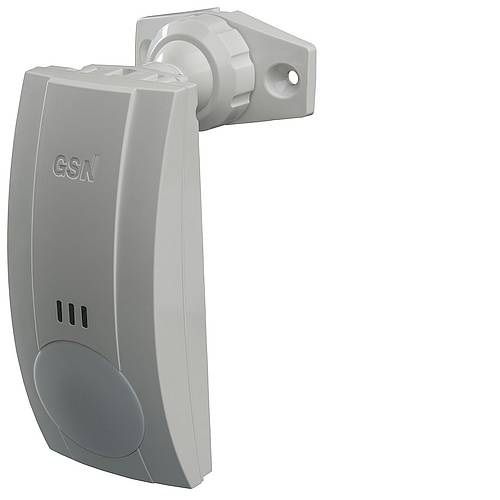

PATROL-103PET is immune to pets of up to 25kg
Detection speed range:  0.3 - 3.0m/sec;
Power input:  9 - 16VDC;
Current consumption:
In stand-by mode:  17mA;
In alarm mode:  55mA;
Microwave frequency 10,525GHz;
Alarm period:  3sec;
Warm up period:  60sec;
Reset time:  5±1sec;
Relay output:  60V; 100mA; 16Ω;
PIR detection range:  15.6m x 120º;
Light immunity:  no less than 6500Lux;
Opening protection:  TAMPER SWITCH;
Operating temperature range:  -30ºC +60ºC;
Storage temperature range:  -50ºC +80ºC;
RFI immunity:  30V/m at a frequency range 30MHz - 1GHz;
EMI immunity:  50000V;
Dimensions:  54mm x 34mm x 120mm;
Weight:  155gr.
