Iekštelpu detektori

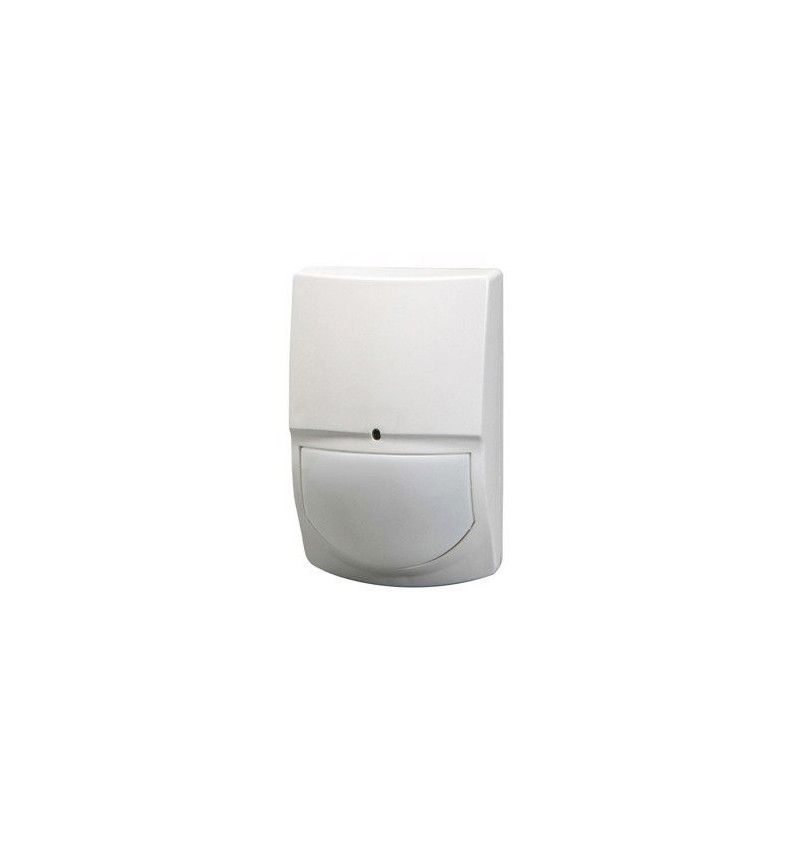

SWAN QUAD Kustības detectors
cena 10.50 €
cena bez PVN 8.68 €
Preču cena norādīta ar iekļautu PVN 21%.
Norādītā cena ir spēkā, pasūtot preci 14.01.2026.
Norādītā cena ir spēkā, pasūtot preci 14.01.2026.
| Detection method | Quad (Four Element) PIR |
| Alarm period | 2 sec (± 0.5sec) |
| Led indicators | LED is ON during alarm |
| Warm up period | 60sec (± 5sec) |
| Alarm output | N.C 28VDC 0.1 A with 27Ohm series protection resistor |
| Tamper Switch | N.C 28VDC 0.1A with 10 Ohm series protection resistor open when cover is removed |
| Operating voltage | 8.2 to 16 VDC |
| Current draw | Active: 10mA (± 5%), Standby: 8mA (± 5%) |
| White light filter | 3500 Lux up to 6500 Lux with optional filter |
| RFI protection | 30V/m 10 – 1000MHz |
| EMI protection | 50,000V of electrical interference from lightning or power through |
| Optimum installation height | 1.8m to 2.4m |
| Temperature compensation | Yes |
| Operating temperature | -10°C to +55°C |
| Dimensions | 92mm x 59mm x 37mm |
| Weight | 53 gr |
