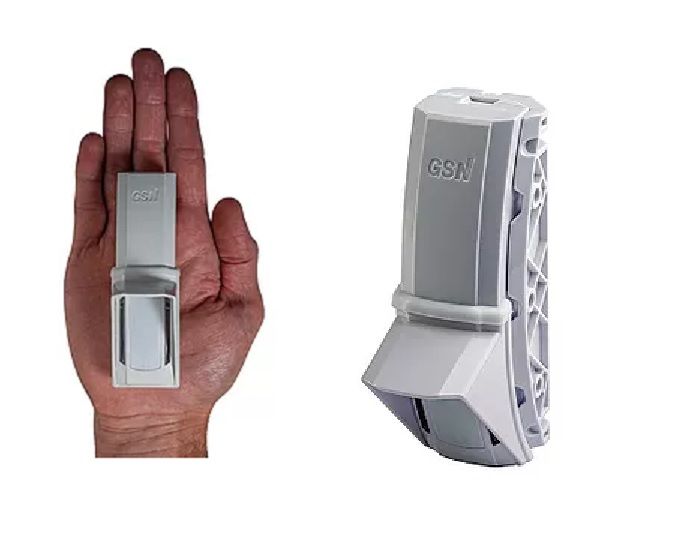

PATROL-108PET combined motion detector, PIR+MW, curtain, Indoor/Outdoor
price 63.80 €
price without PVN 52.73 €
Price includes tax 21%.
The indicated price is valid ordering till 15.04.2026.
The indicated price is valid ordering till 15.04.2026.
PATROL-108PET Combined PIR &MW motion detector designed for use indoor or outdoor areas and low-temperature environments up to - 40°С.
Creates a narrow protective curtain allowing free movement within the protected area without triggering the alarm.
With anti-mask technology, detect all types of masking attempts.
Provides additional protection of the detector from sunlight due to the presence of a light protection filter.
Provides additional protection from sunlight, snow, rain, thanks to the presence of a protective cover.
Provides pet immune up to 30kg.
| Input voltage: | 9 -16V |
|
Current consumption: In standby mode: |
47mA |
|
In alarm mode: |
72mA |
| Microwave frequency: | 24.125GHz |
| Anti-mask startup (boot) period: | 50 ± 5 sec |
| Adjustable mask detection: | 0 – 12 cm (adjustable) |
| Detector warm up period: | 50 ± 5 sec |
| Detection range: | 12meters |
| Detection speed range: | 0.2 – 4 m/sec |
| Relay output: | NC/NO; 60V; 100mA; 16Ω |
| Relay output: | TМ/AM/SH/NC; 60V; 100mА; 16Ω |
| Anti-mask alarm activation delay: | 40-60sec |
| Adjustable mask detection: | 0 –12cm |
| Alarm period: | 3sec |
| Reset time: | 5±1sec |
| Pulse counter | 1–5 |
| Installation height | 2.5m |
| Light immunity | no less than 50000 lux |
| Operating temperature range | – 40°C +60°C |
| Protection rating | IP65 |
| RFI immunity | 30V/м at a frequency range 30MHz-2GHz |
| EMI immunity | 50,000V |
| Dimensions: | 30mm x 25mm x 111mm |
| Weight | 85gr |
