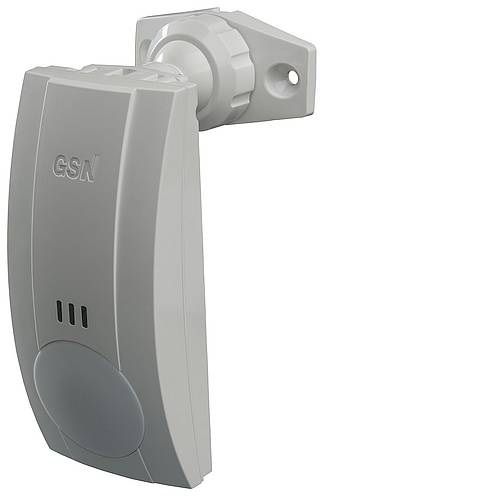

Patrol

Detection speed range:    0.3 - 3.0m/sec;
Power input:            8.5 - 16VDC;
Current consumption:
In stand-by mode:    11.5mA;
In alarm mode with LED on:    10mA;
In alarm mode with LED off:    7mA;
Pulse mode:    automatic/2;
Alarm period:    3sec;
Coverage range:    18meters;
Relay output:    60V; 120mA; 16Ω;
Warm up period:    40sec;
Reset time:    5±1sec;
Light immunity:    no less than 10000Lux;
Opening protection:    TAMPER SWITCH;
Operating temperature range:    -30ºC +50ºC;
Storage temperature range:    -40ºC +80ºC;
RFI immunity:    30V/m at a frequency range 10MHz - 1000MHz;
EMI immunity:    50000V;
Dimensions:    93mm x 66mm x 46mm;
Weight:    94gr.
