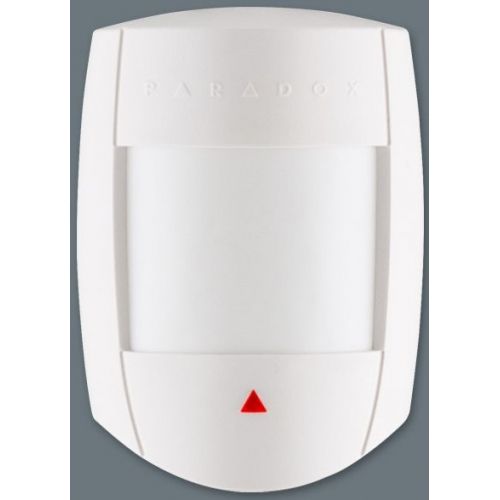

Paradox

Sensor Type DG55+: Dual Element Infrared
Sensor Geometry DG55+ Rectangular
Coverage: 110° (standard) 12m (40ft) X 12m (40ft)
Installation Height: 2.1m to 2.7m (7ft to 9ft)
RFI / EMI rejection 10V/m rejection from 10MHz to 2.7GHz
Voltage: input 9 to 16Vdc
Current consumption: 15mA max. / 6mA min. (LED disabled)
Anti-tamper switch 150mA / 28Vdc, N.C.
Lens 2nd generation Fresnel lens, LODIFF®
Alarm output DG55+: Form A relay 100mA/28Vdc, N.C.
DMP55+ EVO bus connection
Detection speed: 0.2m/s to 3.5m/s (0.6ft/s to 11.5ft/s) Ingress
Operating temperature: -20°C to + 50°C (-4°F to +122°F)
Environmental Standards Complies with EN 50131
